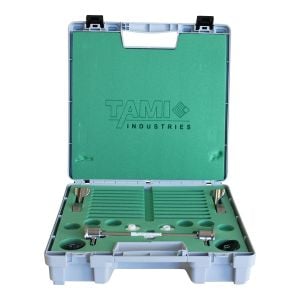

TAMI Valisette, includes one 316L SS cell. Membrane type: 10mm OD x 250mm L. Includes 6 gaskets
EVAC025000000
TAMI
TAMI
3-4 weeks
Details
TAMI Valisette, includes one 316L SS cell. Membrane type: 10mm OD x 250mm L. Includes 6 gaskets
Specifications
Specification | Inopor | MicroKleansep™ | TAMI Valisette |
---|---|---|---|
Membrane Type |
Inopor (R) (1360038) |
MicroKleansep™ |
Filtanium and INSIDE CeRAM™ |
Housing Material |
Stainless Steel
|
Stainless Steel |
Stainless Steel |
Recirculation Rate |
600-2000 l/h
|
200 l/h |
200-600 l/h |
Operating Pressure |
25 bars |
6 bars |
10 bars |
Operating Temperature |
100°C |
85°C |
95 °C |
Wetted Materials |
FFKM O-rings
|
FFKM o-rings |
EPDM and Silicone gaskets |
Connections |
Retentate: 1/2" FNPT Permeate: 1/2" FNPT |
Retentate: Clamp DN25 Permeate: ¼” BSP |
Retentate: Clamp DN38 Permeate: Hose barb |
Applications |
|
|
|
Specification | Inopor micro |
---|---|
Membrane Material |
α-Al2O3 |
Pore Sizes (nm) |
1100,800,600,400,200,100,70
|
Porosity |
40 - 55% |
Specification | Inopor ultra |
|||
---|---|---|---|---|
Membrane Material |
TiO2 |
ZrO2 |
||
Pore Sizes (nm) |
30 |
10 |
5 |
3 |
Porosity |
30 - 55% |
|||
Cut-Off |
100 kDa |
20 kDa |
8,5 kDa |
2 kDa |
