SKU: USY-Cap

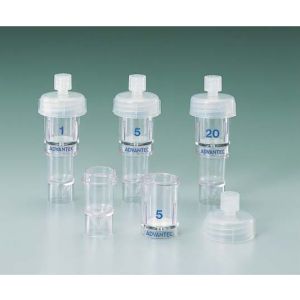

Ultrafiltration Column Caps, 4/pack
$24.65
Key Specifications
- Brand
- Advantec

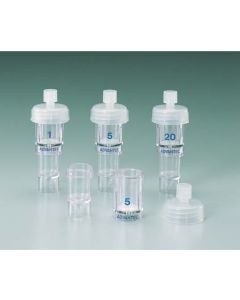

Disposable Ultrafiltration Units
These disposable ultrafiltration units are designed to easily concentrate, separate, or otherwise purify small volumes (< 2 mL) of liquids on the basis of molecular weight cut-off, using positive pressure. A clear filtration chamber allows visual confirmation of filtration progress.
Materials
| Cell cap, luer cap | Polypropylene |
| Check valve | Silicone |
| Retentive cell | Acrylic |
| Ultra filter | Polysulfone |
| Filtrate cell | Acrylic |
General Specifications
| Effective filtration area | 2.0 cm² |
| Maximum cell capacity | 2.0 mL |
| Minimum graduated volume | 0.5 mL |
| Minimum recovery volume | 0.5 mL |
| Maximum concentration | x40 |
| Maximum temperature | 50°C |
| Sterilization | 25% ethanol, 5% formalin |
| Maximum pressure | 0.29 MPa (42.6 psi) |
| Filtrate cell capacity | 2.5 mL |

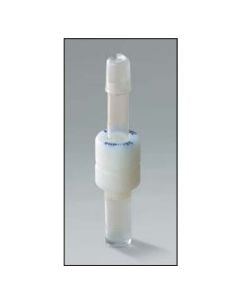

Reusable UF Holder Specifications
| Filter diameter | 13 mm |
| Effective filtration area | 0.65 cm² |
| Minimum sample volume | 0.15 mL |
| Maximum sample volume | 2.0 mL |
| Maximum centrifugal force | 19,600 m/s² |
| Total liquid volume | 0.01 mL |
