SKU: 1180002

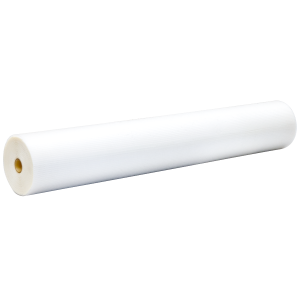

TriSep 1812 Sanitary Element, ACM5, RO, Female, 31mil Spacer
$153.04
Key Specifications
- Designation
- ACM5
- Polymer
- Polyamide-TFC
- Size
- 1.8 x 12 in.
- Pack Size
- 1
- Brand
- TriSep
RO Element Specifications
| Specification | Value |
|---|---|
| Type | Female |
| pH Range (25 °C) | 3-10 |
| Max Pressure | 600 psi |
| Max Operating Temp | 50 °C (122 °F) |
Performance by Model
| Series | TS ACM1 | TS ACM2 | TS ACM5 | TS X20 | AG-LF | AK | SE | SG |
|---|---|---|---|---|---|---|---|---|
| Spacer | 31 mil | 31 mil | 31 mil | 31 mil | 32 mil | 32 mil | 32 mil | 32 mil |
| Cl Tolerance | < 0.1 ppm | < 0.1 ppm | < 0.1 ppm | < 0.1 ppm | 500 ppm·hrs | 500 ppm·hrs | 500 ppm·hrs | 500 ppm·hrs |
| Wrap Type | Sanitary | Sanitary | Sanitary | Sanitary | Durasan* Cage | Durasan* Cage | Durasan* Cage | Durasan* Cage |
| Polymer | PA | PA | PA | Polyamide-Urea | PA | PA | PA | PA |
| Flux (gfd/psi) | 25/225 | 30/225 | 30/110 | 30/225 | 10-20/200 | 26/115 | 22/425 | 22/225 |
| Rejection (NaCl) | 99.5% | 99.5% | 98.5% | 99.5% | 99.8% | 99% | 98.9% | 98.2% |
