SKU: 1300011

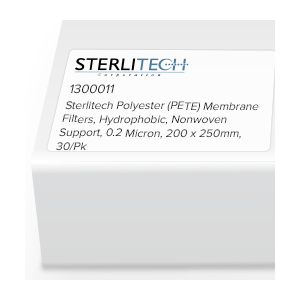

Polyester (PETE) Membrane Filters, Hydrophobic, Nonwoven Support, 0.2 Micron, 200 x 250mm, 30/Pk
$704.67
Key Specifications
- Pore Size
- 0.2
- Diameter (mm)
- 200 x 250
- Pack Size
- 30
- Brand
- Sterlitech
Specifications
| Specification | Value |
|---|---|
| Material type | Polyester, hydrophobic |
| Non-woven support | PET or unsupported |
| Temperature resistance | 160°C |
| Roll width | 10–300 mm |
| Sheet size | Up to 300 x 300 mm |
| Disc size | E.g., 13, 25, 47 mm, or to spec |
| Disc on adhesive liner | Adhesive ring, outer/inner Ø: e.g., 8 mm/4 mm (on request) |
| Chemical compatibility | Very good for medical, life science, and automotive applications |
| Mechanical stability | Flexible (non-supported), rigid (supported) |
| Sterilization compatibility | Autoclavable, EtO, gamma, e-beam |
Performance by Pore Size
| Pore Size (µm) | Air Flow Rate* | Water Entry Pressure** (bar) | Thickness (µm) |
|---|---|---|---|
| 0.2 | 1.5 | ≥ 4.0 | 36 |
| 0.45 | 8.0 | ≥ 1.8 | 140 |
| 0.8 | 19 | ≥ 1.0 | 140 |
| 1.0 | 18 | ≥ 0.8 | 36 |
| 1.2 | 45 | ≥ 0.6 | 140 |
*AFR: Air Flow Rate
**WEP: Water Entry Pressure
