Product gallery
SKU: 180611-11-T

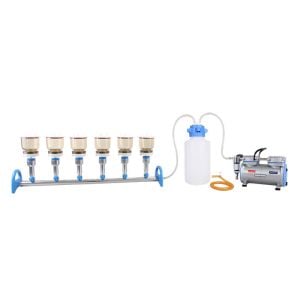

MultiVac 610-MS-T, 6-Branch Aluminum Manifold Vacuum Filtration System, AC 110V/60Hz
$2,452.62
Key Specifications
- Brand
- Rocker
MultiVac 610-MS-T Vacuum Filtration System Includes
- Rocker 400, Oil Free Vacuum Pump
- MultiVac 610-MS, 6 Places Aluminum Manifold
- MF 3, 300 mL Magnetic Filter Holder (6 pcs)
- 4000 mL PP Vacuum Bottle with Drain
- Silicone Tube (1 m x 2 pcs)
Features
- For Large Number of SamplesMultiVac 610-MS-T is an economical model for large sample filtration. It includes vacuum pump, manifold, waste bottle and magnetic filter holders.
- Light and Handy Aluminum DesignAll parts of the manifold are made of aluminum which is light, cost-effective and autoclavable. Each component can be easily removed for cleaning and autoclaving.
- Magnetic Filter Holder Is IncludedMagnetic filter holder allows for one-handed operation, and can prevent the membrane from being twisted or torn.
- 4000 mL PP Vacuum Bottle with DrainThe large capacity of 4000 mL vacuum bottle with drain offers convenience of collecting and draining waste solution.
Multi-Branch Filtration System Specification
| Specification | Rocker 400 (110 V, 60 Hz) | Rocker 400 (220 V, 50 Hz) |
|---|---|---|
| Max Power | 100 W | 80 W |
| Max Current | 1.0 A | 0.4 A |
| Max Vacuum | 99 mbar (abs.) | 105 mbar (abs.) |
| Max Flow Rate | 37 L/min | 34 L/min |
| Vacuum Regulator | Yes | Yes |
| Overflow Protection | Yes | Yes |
| Filter Cartridge | Yes | Yes |
| Thermal Protection | Yes | Yes |
| Motor Rotation Speed | 1750 RPM | 1450 RPM |
| Horse Power | 1/6 HP | 1/6 HP |
| Noise Level | 52 dB | 52 dB |
| Hose Barb | ID8 | ID8 |
| Specification | Value |
|---|---|
| Number of Branch | 6 |
| Filter Diameter | 47 mm |
| Material Contact with Filtrate | Aluminum |
