SKU: 180301-11-T
MultiVac 301-MB-T, Vacuum Filtration System, AC110V, 60Hz
$2,337.00
Key Specifications
- Brand
- Rocker

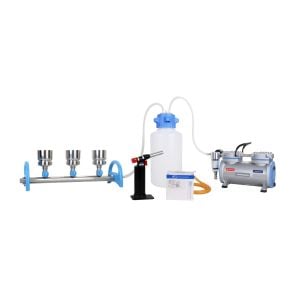

MultiVac 301-MB-T Vacuum Filtration System Includes
- Rocker 400, Oil Free Vacuum Pump
- MultiVac 300-MB, 3 Places Stainless Steel Manifold
- SF, 100 mL Stainless Steel Funnel (3 pcs)
- 4000 mL PP Vacuum Bottle with Drain
- Dragon 100, Torch Burner
- MCE Membrane, 47 mm, 0.45 μm, 100/PK
- Silicone Tube (1 m x 2 pcs)
Features
- For Microbiological FiltrationMultiVac 301-MB-T is a perfect kit for microbiological tests with large number samples. All wetted parts of manifold are made of SS316 stainless steel, which can be fast sterilized by flame.
- Quick-Assembly and DisassemblyEach component can be easily removed for cleaning and autoclaving.
- Innovative Vent Valve DesignUnique adjustable vent valve design eliminates water hammer phenomenon and helps drain residual liquid in pipe.
- 4000 mL PP Vacuum Bottle with DrainageThe large capacity of 4000 mL vacuum bottle with drain offers convenience of collecting and draining liquid waste.
- Quick-Fit Hose BarbDetachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.
Multi-Branch Filtration System Specification
| Specification | Rocker 400 (110 V, 60 Hz) | Rocker 400 (220 V, 50 Hz) |
|---|---|---|
| Max Power | 100 W | 80 W |
| Max Current | 1.0 A | 0.4 A |
| Max Vacuum | 99 mbar (abs.) | 105 mbar (abs.) |
| Max Flow Rate | 37 L/min | 34 L/min |
| Vacuum Regulator | Yes | Yes |
| Overflow Protection | Yes | Yes |
| Filter Cartridge | Yes | Yes |
| Thermal Protection | Yes | Yes |
| Motor Rotation Speed | 1750 RPM | 1450 RPM |
| Horse Power | 1/6 HP | 1/6 HP |
| Noise Level | 52 dB | 52 dB |
| Hose Barb | ID8 | ID8 |
| Specification | Value |
|---|---|
| Number of Branch | 3 |
| Funnel | SF Stainless Steel Funnel, 100 mL x 3 |
| Filter Diameter | 47 mm |
| Material Contact with Filtrate | SS316 |
