SKU: AAH332615U

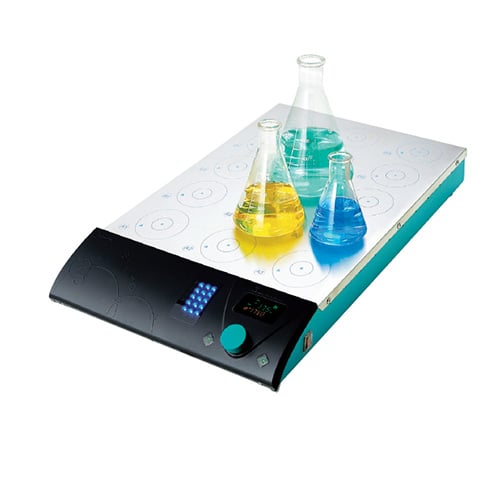

MS-53M Multi Position Magnetic Stirrer (Horizontal x Vertical, 5×3), 100-240V, 50/60Hz, US Plug
$2,781.00
Key Specifications
- Model
- MS-53M
- Type
- Stirrer (Analog)
- Electrical
- 100-240V, 50/60Hz
- Brand
- Jeiotech
MS-23M / MS-53M — Multi Position Magnetic Stirrers
These stirrers control multiple positions independently, with four selectable modes — All (uniform speed across the whole plate), Column, Row, or Point — so you can run different stirring experiments at once, or run everything the same. Feedback control keeps speed accurate even as sample viscosity or volume changes, and stirring position is marked directly on the stainless top plate for easy reference.
- Simultaneous display of set speed and actual speed
- Countdown timer, up to 99 hours 59 minutes
- Special permanent magnets maintain stirring strength across all positions
- Spark-free BLDC motor
- Spill-conscious housing minimizes liquid intake
- Smooth start/stop stirring helps prevent sample splashing
- Optional silicone pad helps prevent glassware from slipping
Specification
| Specification | MS-23M | MS-53M |
|---|---|---|
| Speed range (rpm) | 30 to 2,000 | 30 to 2,000 |
| Capacity per point at 2,000 rpm (H₂O, mL) | 250 | 250 |
| Operating mode | 4 (All, Column, Row, Point) | 4 (All, Column, Row, Point) |
| Position (Row x Column) | 6 (2 x 3) | 15 (5 x 3) |
| Point distance (WxD, mm / in) | 117 x 170 / 4.61 x 6.69 | 117 x 90 / 4.61 x 3.54 |
| Magnetic bar, max. (LxØ, mm / in) | 30 x 8 / 1.18 x 0.31 | 30 x 8 / 1.18 x 0.31 |
| Load, max. (kg / lbs) | 30 / 66.14 | 30 / 66.14 |
| Top plate | Stainless steel | Stainless steel |
| Body | Powder coated steel, PET | Powder coated steel, PET |
| Motor type | BLDC (Brushless Direct Current) | BLDC (Brushless Direct Current) |
| Top plate (WxD, mm / in) | 362 x 318 / 14.25 x 12.52 | 367 x 485 / 14.45 x 19.09 |
| Exterior (WxDxH, mm / in) | 377 x 436 x 82 / 14.84 x 17.16 x 3.23 | 377 x 599 x 82 / 14.84 x 23.58 x 3.23 |
| Net weight (kg / lbs) | 6 / 13.23 | 11 / 24.25 |
| Timer | Max. 99 hrs 59 min | Max. 99 hrs 59 min |
| Electrical requirements | AC 100 ~ 240V, 50/60Hz, 11.0A max. | |
| Power consumption (W) | 45 | 135 |
