SKU: AAH331315BU
MS-22GB Magnetic Stirrer (Digital, 220mm, Persian Blue), 100-240V, 50/60Hz, US Plug
$563.00
Key Specifications
- Model
- MS-22GB
- Type
- Stirrer (Digital)
- Electrical
- 100-240V, 50/60Hz
- Brand
- Jeiotech

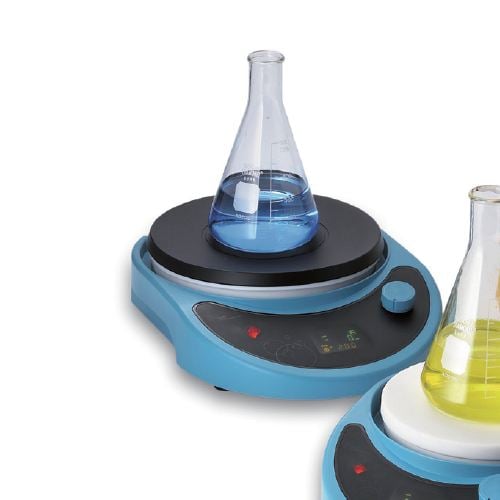

MS-22GB — Digital Magnetic Stirrer
MS-22GB is the Persian Blue color option of Jeio Tech's MS-22G digital magnetic stirrer (Cat. No. AAH331315BU).
- Feedback control keeps speed accurate even as sample viscosity or volume changes
- Polypropylene construction with good chemical resistance
- Rubber feet help minimize vibration during high-speed stirring
- Special permanent magnets maintain stirring strength
- Simultaneous display of set speed and actual speed
- Countdown timer, up to 99 hours 59 minutes, plus a 2-step repeat program
- Optional clamp rod for mounting other equipment (burettes, sensors, etc.)
- Silicone-topped plate helps prevent glassware from slipping
Specification
| Speed range | 30 to 2000 rpm |
| Capacity (L / cu ft, H₂O) | 5 / 0.18 |
| Speed stability | ± 1% |
| Magnetic bar, max. (LxØ, mm / in) | 50 x 10 / 1.97 x 0.39 |
| Load, max. (kg / lbs) | 25 / 55.12 |
| Top plate | Polypropylene with silicone cover |
| Body | Polypropylene |
| Motor type | BLDC (Brushless Direct Current) |
| Top plate (Ø, mm / in) | 220 / 8.66 |
| Exterior (WxDxH, mm / in) | 260 x 355 x 72 / 10.23 x 13.98 x 2.83 |
| Net weight (kg / lbs) | 1.8 / 3.97 |
| Electrical requirements | AC 100 ~ 240V, 50/60Hz, 0.4A max. |
| Power consumption (W) | 6 |
