SKU: 17302390

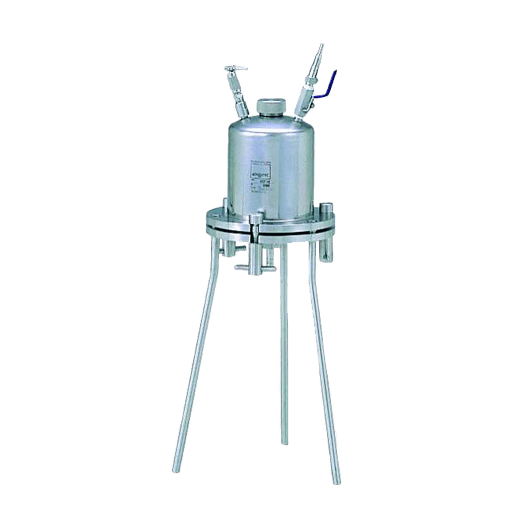

KST 142, SS Holder with Multimedia Filter Holder and 1.5L Reservoir, 304 SS
Sterlitech large stainless steel filter holders with reservoirs are ideal for sterilizing and ultra-cleaning as well as for flow decay tests for pilot studies.
$6,095.95
Key Specifications
- Reservoir
- 1.5 L Reservoir
- Diameter (mm)
- 142
- Material Type
- 304 Stainless Steel
- Brand
- Advantec
Filter Holder Comparison
| Series |  |
 |
 |
 |
 |
 |
 |
 |
 |

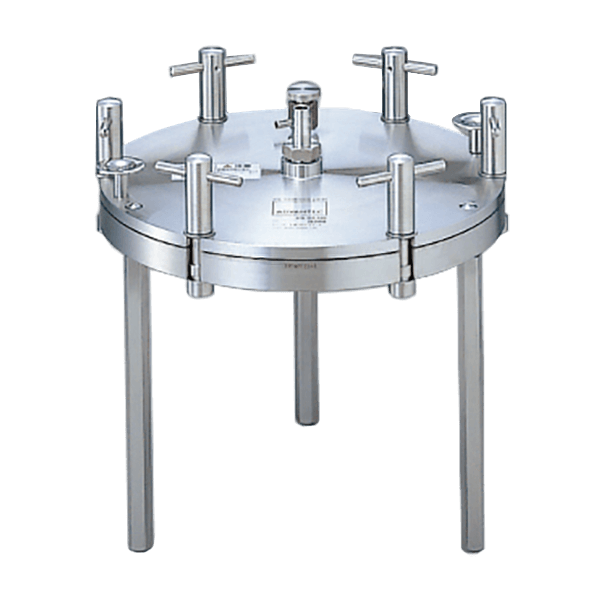

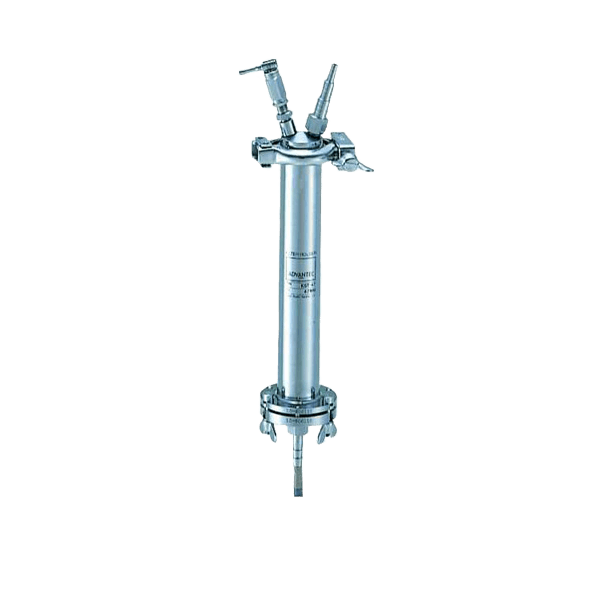

| Product Name | KS 90 / KS 90 ST | KS 142 / KS 142 ST | KS 293 / KS 293 ST | KS 90 UH | KS 142 UH | KS 293 UH | KST 47 | KST 90 | KST 142 |
| Filter Size (mm) | 90 | 142 | 293 | 90 | 142 | 293 | 47 | 90 | 142 |
| Body | 304 or 316 Stainless Steel | 304 or 316 Stainless Steel | 304 or 316 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 or 316 Stainless Steel | 304 or 316 Stainless Steel |
| O-Ring & Gasket | Silicone and PTFE | Silicone and PTFE | Silicone and PTFE | Silicone | Silicone | Silicone | Silicone and PTFE | Silicone and PTFE | Silicone and PTFE |
| Inlet/Outlet | 3/4” NPTF and NPTM to 3/8” hose barb (ST Models: 1.5" Sanitary fitting to 14.3 mm hose barb) |
3/4” NPTF and NPTM to 3/8” hose barb (ST Models: 1.5" Sanitary fitting to 14.3 mm hose barb) |
3/4” NPTF and NPTM to 5/8” hose barb | 3/4” NPTF and NPTM with 11 mm hose barb adapter | 3/4” NPTF and NPTM with 11 mm hose barb adapter | 3/4” NPTF and NPTM with 16 mm hose barb adapter | 1/4” NPTM with 11 mm hose barb adapter | 1/4” NPTM w/ ball valve stepped (7, 10.5, 13 mm) hose barb adapter 1/4” NPTM with 11 mm hose barb adapter |
1/4” NPTM w/ ball valve stepped (7, 10.5, 13 mm) hose barb adapter 1/4” NPTM with 11 mm hose barb adapter |
| Max Pressure Inlet (psi) | 99 | 99 | 99 | 99 | 99 | 99 | 71 | 71 | 71 |
| Max Pressure Diff. (psi) | < 42 | < 42 | < 42 | < 42 | < 42 | < 42 | < 42 | < 42 | < 42 |
| Filtration Area (cm²) | 45.3 | 113 | 530 | 45.3 | 113 | 530 | 12.5 | 43 | 113 |
