SKU: CA129025

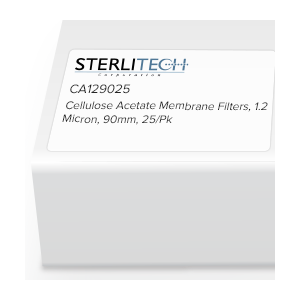

Cellulose Acetate Membrane Filters, 1.2 micron, 90mm, 25/pk
Composed of pure cellulose acetate, Sterlitech cellulose acetate (CA) membrane filters are Sterlitech’s lowest binding small filter devices. These cellulose membrane filters have a pore size of 1.2 microns and a diameter of 90 mm
$86.47
Key Specifications
- Pore Size
- 1.2
- Diameter (mm)
- 90
- Pack Size
- 25
- Brand
- Sterlitech
General
| Sterilization | Gamma irradiation, EtO, autoclave |
| USP Class VI test | Passed |
| BSA protein binding | 3.8 µg/cm² |
| Max. operating temperature | 135°C (275°F) |
Performance by Pore Size
| Pore Size | Nominal Thickness | Flow Rate1 | Min. Bubble Point |
|---|---|---|---|
| 0.22 µm | 65-110 µm | 16.1 | 50 psi |
| 0.45 µm | 65-110 µm | 54.7 | > 30 psi |
| 0.65 µm | 65-110 µm | 70.9 | 18 psi |
| 0.80 µm | 65-110 µm | 81.3 | 14 psi |
| 1.20 µm | 65-110 µm | 180 | 11 psi |
| 3.00 µm | 135 µm | 500 | 5 psi |
| 5.00 µm | 65-110 µm | 375 | 6 psi |
1. Flow rates measured with water as mL/min/cm² at 10 psi (0.7 kg/cm²)
