SKU: CA022005

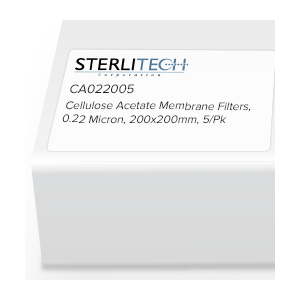

Cellulose Acetate Membrane Filters, 0.2 Micron, 200 x 200mm, 5/PK
Composed of pure cellulose acetate, Sterlitech cellulose acetate (CA) membrane filters are Sterlitech’s lowest binding small filter devices. These cellulose membrane filters have a pore size of 0.2 microns and sheet dimensions of 200 mm x 200 mm
$131.80
Key Specifications
- Filter Material
- Cellulose Acetate
- Material Type
- Plain
- Pore Size
- 0.22
- Diameter (mm)
- 200 x 200
- Pack Size
- 5
- Brand
- Sterlitech
General
| Sterilization | Gamma irradiation, EtO, autoclave |
| USP Class VI test | Passed |
| BSA protein binding | 3.8 µg/cm² |
| Max. operating temperature | 135°C (275°F) |
Performance by Pore Size
| Pore Size | Nominal Thickness | Flow Rate1 | Min. Bubble Point |
|---|---|---|---|
| 0.22 µm | 65-110 µm | 16.1 | 50 psi |
| 0.45 µm | 65-110 µm | 54.7 | > 30 psi |
| 0.65 µm | 65-110 µm | 70.9 | 18 psi |
| 0.80 µm | 65-110 µm | 81.3 | 14 psi |
| 1.20 µm | 65-110 µm | 180 | 11 psi |
| 3.00 µm | 135 µm | 500 | 5 psi |
| 5.00 µm | 65-110 µm | 375 | 6 psi |
1. Flow rates measured with water as mL/min/cm² at 10 psi (0.7 kg/cm²)
