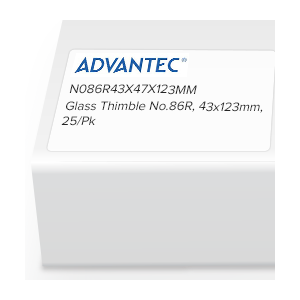

Glass Thimbles, Advantec, No.86R, 47 X 123mm OD, 25/Pk
Powered by Bioz
N086R43X47X123MM
Advantec
No.86R
Glass Fiber
47 x 123 mm
25
3-4 weeks
Specifications
| Â | Grade |
Material |
Nominal Rating (μm)  |
Thicknss (mm) Â |
Weight (g per 25 x 90 thimble) |
Pressure Drop (kPa at 5L/min) |
Collection Efficiency (%, 0.3 μm DOP) |
Max. Operating Temp. (°C) |
Heating Loss Rate (%) |
Conversion |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| Whatman | ex-Schleicher & Schuell | ||||||||||
 |
84 | Cellulose | 8 | 1.5 | 3.6 | 0.25 | 89 | 120 | - | 2800 | 603 |
 |
86R | Borosilicate Glass Fiber | 1 | 1.6 | 1.8 | 0.30 | >99.9 | 500 | 0.2 | 2814 | 603G |
 |
88R | Quartz/Silica Fiber | - | 2.2 | 1.6 | 0.44 | >99.9 | 1000 | - | - | - |
 |
88RH | Quartz/Silica Fiber | - | 2.2 | 1.6 | 0.44 | >99.9 | 1000 | 0.1 | 2812 | - |
 |
89 | PTFE Fiber | - | 1.8 | 11.0 | 4.5 | >99.9 | 260 | - | - | - |
 |
89S | PTFE - Silica Fiber | - | 1.6 | 6 | 0.54 | >99.9 | 400 | 0.7 | - | - |
