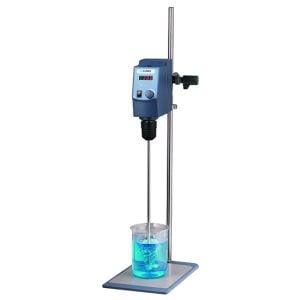

Scilogex OS20-S Overhead LED Digital Stirrer, 20L, 110-220V, 50/60Hz
84010201
Sterlitech
5-7 days
Details
Scilogex OS20-S Overhead LED Digital Stirrer, 20L, 110-220V, 50/60Hz
Applications
OS20-S/OS40-S Features:
- Analog speed control with LED real-time display of speed
OS20-Pro/OS40-Pro Features:
- Anti-spill feature: PC control insures smooth acceleration, preventing spills.
- LCD real-time display: Set value and actual value are displayed.
- PC connection via RS232 Port: Allows for PC control and documentation of all measuring values.
Specifications
OS40-Pro | OS20-Pro | OS40-S | OS20-S | |
---|---|---|---|---|
Maximum Stirring Quantity (Liters) | 40 L | 20 L | 40 L | 20 L |
Motor Rating Input | 120 W | 60 W | 120 W | 60 W |
Motor Rating Output | 100 W | 50 W | 100 W | 50 W |
Speed Range (RPM) | 50-2200 | 50-2200 | 50-2200 | 50-2200 |
Speed Display Accuracy | ±3% | ±3% | - | - |
Speed Display Resolution (RPM) | 1 | 1 | 1 | 1 |
Maximum Torque (Ncm) | 60 | 40 | 60 | 40 |
Dimensions (mm) | 83 x 220 x 186 | 83 x 220 x 186 | 83 x 220 x 186 | 83 x 220 x 186 |
Weight | 2.8 kg | 2.6 kg | 2.8 kg | 2.6 kg |
Voltage (V AC) | 100-240 | 100-240 | 100-240 | 100-240 |
Power | 130 W | 70 W | 130 W | 70 W |
Protection Class | IP21 | IP21 | IP21 | IP21 |
Working Temperature (C) | 5-40 | 5-40 | 5-40 | 5-40 |
