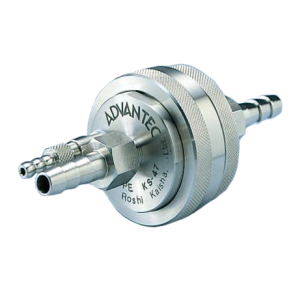

KS 47, Vented In-Line Stainless Steel Holder, 316SS, 47mm

Materials:	KS 13	KS 25	KS 25F	KS 47F	LS 25	LS 47	LS 47 HP	KS 47
Body and support screen	Type 304 Stainless Steel		Body:SUS304 Support screen:SUS316		Type 304 Stainless Steel		Body:SUS304 Support screen:SUS316	Type 304 or 316 stainless steel
Gasket	PTFE		FPM and Silicone		PTFE		-	PTFE
O-ring	PTFE		PTFE		PTFE	Silicone	FPM	FPM and silicone
Locking ring	-	-	-	-	Nickel-plated brass		-
Support screen	-	-	-	-	-	-	-	PTFE coated stainless steel
Connections:
Inlet	Female Luer-lock		6 mm (0.24") OD barb	8 mm (0.32") OD barb	1/4" NPTF, comes with hose barb fitting (3/8")		1/4" NPTF	1/4" NPTM to hose barb (9.5 mm)
Outlet	Male Luer slip		6 mm (0.24") OD barb	8 mm (0.32") OD barb	1/4" NPTM, comes with hose barb fitting (3/8")		1/4" NPTF
Dead volume	0.2 mL	0.4 mL	-	-	-	-	3 mL (upstream) 6.5 mL (downstream)	5 mL (upstream) 2 mL (downstream)
Pressure:
Inlet	0.68 MPa (99 psi		0.49 MPa (71 psi)		0.49 MPa (71 psi)		9.8 MPa (1422 psi)	0.68 MPa (99 psi)
Differential	0.29 MPa (42 psi)		0.29 MPa (42 psi)		0.20 MPa (29 psi)		1.9 MPa (276 psi)	0.29 MPa (42 psi)
Membrane Compatibility:
Filter size	13 mm	25 mm	25 mm	47 mm	25 mm	47 mm	47 mm	47 mm
Prefilter size	8 mm	21 mm	21 mm	35 mm (47 mm)*	25 mm	47 mm	38 mm	35 mm (47 mm)**
Filtration area	0.9 cm2	3.8 cm2	3.8 cm2	12.5 cm2	3.8 cm2	12.5 cm2	12.5 cm2	12.5 cm2
Dimensions:
Diameter	16 mm (0.6")	32 mm (1.25"	50 mm (2.0") (without clamp)	64 mm (2.5")  (without clamp)	38 mm (1.5")	69 mm (2.7")	88 mm (3.5")
Length	39 mm (1.54")	36 mm (1.42")	72 mm (2.8") (with vent valve)	78 mm (3.1") (with vent valve)	50 mm (2.0")	57 mm (2.2")	94 mm (3.7")
Weight:	0.1 kg (0.25 lb)	0.2 kg (0.38 lb)	0.45 kg (1 lb)	0.9 kg (2 lb)	0.3 kg (0.63 lb)	0.8 kg (1.75 lb)	2.7 kg (6.0 lb)	0.8 kg (1.8 lb)

** If a membrane filter is used as a prefilter, use a 47 mm filter and place a polyester mesh separator between the 2 membranes

** If a membrane filter is used as a prefilter, use a 47 mm filter and place a polyester separator (DS type) between the 2 membranes

• Point-of-use filtration on sterile filling machines
• In-line filter between pressure source and dispensing vessel
• Ultracleaning and sterilization of compressed gases
• Flow decay studies for scale-up (sanitary)
• KS 13 is recommended to clarify and sterilize small liquid volumes (clearing serums, purifying viral solutions)
