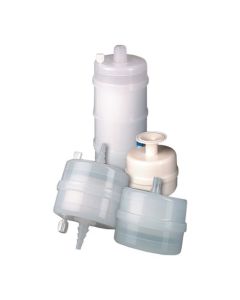

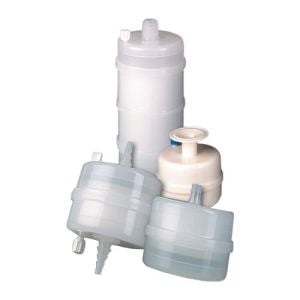

Polypropylene Media Capsule Filter, 20 Micron, 1/4" MNPT Inlet&Outlet, EFA: 2.7sqft, OAL: 7.6in (CFAP2027RR)

SKU
1470124
Manufacturer
Sterlitech
Pore Size
20
Filtration Area sqft
2.7
Length (in)
7.6

Details

Polypropylene Media Capsule Filter, 20 Micron, 1/4" MNPT Inlet&Outlet, EFA: 2.7sqft, OAL: 7.6in (CFAP2027RR)

Polypropylene Capsule Filter Applications:

  • Etchants
  • Photoresists
  • Developers
  • Solvents
  • Acids
  • Bases
  • Fine Chemicals
  • Vent/Process air filtration

Sterlitech Polypropylene filter capsules may be sanitized with a variety of commonly used chemical agents. The capsules may be repeatedly autoclaved for up to 5 cycles. Sterlitech certifies that the materials contained in its Polypropylene Capsule filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR.

Polypropylene Capsule Filter Product and Performance

Materials of Construction

Membrane:

Hydrophobic Polypropylene

Membrane Supports:

Polypropylene Microfiber

Housing:

Polypropylene

Cage, Core, End Caps:

Polypropylene

Fitting Connections: MNPT, FNTP, Compression, Flare, Sanitary Flange, Hose Barb
Dimensions (Nominal)

Lengths Available*:

3.5 - 5.0" (9-13 cm)

*Varies with connection styles

7.6 - 9.1" (19-23 cm)

11.5 - 13.0" (29-33 cm)

Diameter:

3.5 in (9 cm)

Effective Filtration Area:

0.8 ft² (748 cm²) / Small

3.0 ft² (2806 cm²) / Medium

5.9 ft² (5500 cm²) / Large

Operating Conditions
Max Operating Pressure: 80 psi (5.5 bar) @ 70ºF (21ºC) in Liquid, 55 psi (3.8 bar) @ 70ºF (21ºC) in Gas
Max Differential Pressure: 60 psi (4.1 bar) @ 70ºF (21ºC)
Max Operating Temperature:

110ºF (43ºC) at ≤30 psi (2.1 bar) Operating Pressure

Autoclave: Up to 5 Cycles. 30 minutes @ 121ºC

Polyethersulfone Capsule Filter General Specifications


Fitting Connections MNPT, FNTP, Compression, Flare, Sanitary Flange, Hose Barb
End Fitting 1/4" Barb, 1.5" Sanitary Flange, 1/2" NPTM, 1/4" Barb, 1/4" NPTM, 3/8" Barb
End Fittings Polypropylene Microfiber
Diameter 9 cm (3.5 in)
Max Operational Temp 43 °C (110 °F) at 2.1 bar (30 psi)
Max Operational Pressure 5.5 bar (80 psi) @ 21°C (70°F) in Liquid, 3.8 bar (55 psi) @ 21°C (70°F)
Max Differential Pressure 4.1 bar (60 psi) @ 21°C (70°F)
Autoclave Up to 5 x 30 min. cycles at 121 °C
